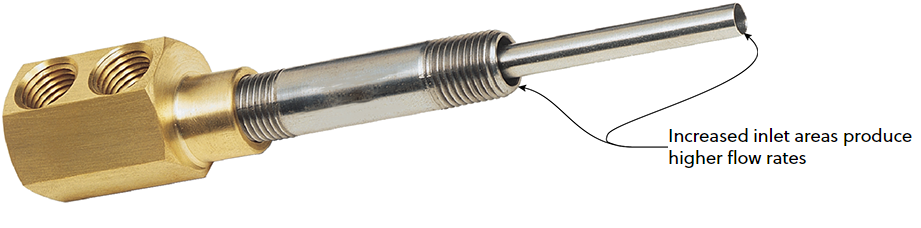

High-Flow Cascade Assemblies
If cooling rates are limiting cycle times, or connection leakage is a problem, the High-Flow Cascade is the answer.
- 35-65% Higher flow rates than
standard Nipple Type Cascades - Offset design provides more sealing threads without pipe interference
- Assemblies include brass head,
12″ High Flow Piston Tube and
2″ long Stainless Pipe Nipple.
| Catalog Number | Mold Nipple (NPT) | IN/OUT Pipe (NPT) | Tube Thread Size | High-Flow Tube Included (12″ OAL) | Hex Size H | Offset | E | C | L | Tube End Ref. X | Step Download |
| HF16N | 1/16 | 1/16 | 10-32 | HF125T-12 | 5/8 | 3/32 | 1/4 | 1/2 | 1 1/4 | .88 |  |
| HF186N | 1/8 | 1/8 | 1/4-28 | HF187T-12 | 3/4 | 3/32 | 5/16 | 11/16 | 1 5/8 | 1.14 | |
| HF181N | 1 | 1 15/16 | 1.15 | | |||||||
| HF146N-4 | 1/4 | 1/4 | 5/16-24 | HF250T-12 | 1 | 5/32 | 11/32 | 11/16 | 1 7/8 | 1.3 | |
| HF141N-4 | 1 | 2 3/16 | 1.55 | | |||||||
| HF381N-4 | 3/8 | 1/4 | 7/16-20 | HF375T-12 | 1 1/8 | 1/8 | 11/32 | 1 | 2 1/4 | 1.64 | |
| HF121N-4 | 1/2 | 1/4 | 1/2-20 | HF437T-12 | 1 3/8 | 1/8 | 3/8 | 1 | 2 3/8 | 1.77 | |
High-Flow Cascade Heads Only
- All dimensions same as above for corresponding catalog number.
- Order Adjustable Brass Nipples, or other pipe
nipples - Order High-Flow Tubes here.
| Catalog Number | Tube Thread | Standard High-Flow Tube | Alternate High-Flow Tube | Step Download |
| HF16H | 10-32 | HF125T- | JHF093T- | |
| HF186H | 1/4-28 | HF187T- | JHF125T- | |
| HF181H | | |||
| HF146H-4 | 5/16-24 | HF250T- | JHF187T- | |
| HF141H-4 | | |||
| HF381H-4 | 7/16-20 | HF375T- | JHF312T- | |
| HF121H-4 | 1/2-20 | HF437T- | JHF375T- | |
