Street Elbows Male & Female Thread Combination

Male Hex Elbows

Available in brass or zinc plated steel
Easy socket wrench installation and removal requires minimal clearance
Full flow path allows connecting fittings to be torqued tight without choking off flow
BSPT Threads are available

Steel Catalog Number	Brass Catalog Number	Pipe Size A	Pipe Size B	L	E	Wrench Clearance Dia. “D”	Hex Size	Steel	Brass	Step Download
M16S	M16SB	1/16	1/16	15/16	7/32	1	9/16	•	•
M18S	M18SB	1/8	1/8	1 1/16	9/32	1 1/4	3/4	•	•
M1814S	M1814SB	1/8	1/4	1 3/16	9/32	1 1/4	3/4	•	•
M14S	M14SB	1/4	1/4	1 5/16	11/32	1 3/8	7/8	•	•
M1438S	M1438SB	1/4	3/8	1 7/16	11/32	1 3/8	7/8	•	•
M38S	M38SB	3/8	3/8	1 5/8	7/16	1 1/2	1	•	•
M50S	M50SB	1/2	1/2	2	9/16	1 7/8	1 1/4	•	•
M75S	M75SB	3/4	3/4	2 1/8	5/8	2 1/4	1 1/2	•	•

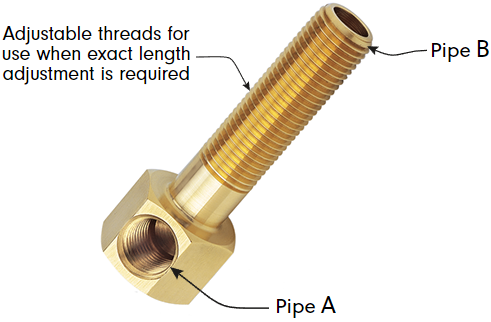

Brass Extension Elbows

Available in brass or zinc plated steel
Easy socket wrench installation and removal requires minimal clearance
Full flow path allows connecting fittings to be torqued tight without choking off flow
BSPT Threads are available

Catalog
Number

Pipe Size
A

Pipe Size
B

Hex Size

Wrench Clearance
Dia. “D”

OVERALL LENGTH ‘L’

Step
Download

2 1/2

5 1/2

8 1/2

11 1/2

18B-

1/8

3/4

1 1/4

9/32

•

1814B-

1/4

3/4

1 1/4

9/32

•

14B-

1/4

7/8

1 3/8

11/32

•

1438B-

3/8

7/8

1 3/8

11/32

•

38B-

3/8

1 1/2

1/2

•

50B-

1/2

1 1/4

1 3/4

5/8

•

* To order, specify Catalog Number and Overall Length. Example: 14B-4
* For a custom length, specify Catalog Number and Overall Length. Example: 14B-7.875

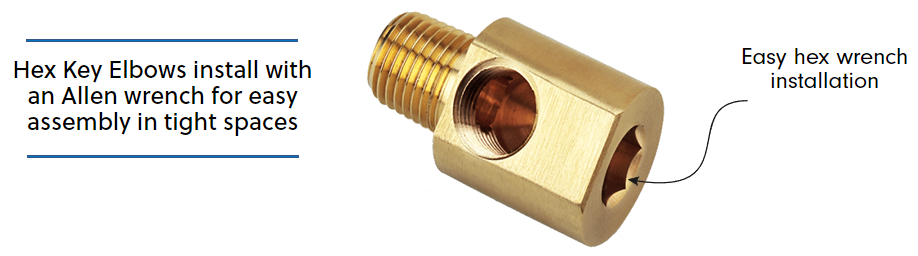

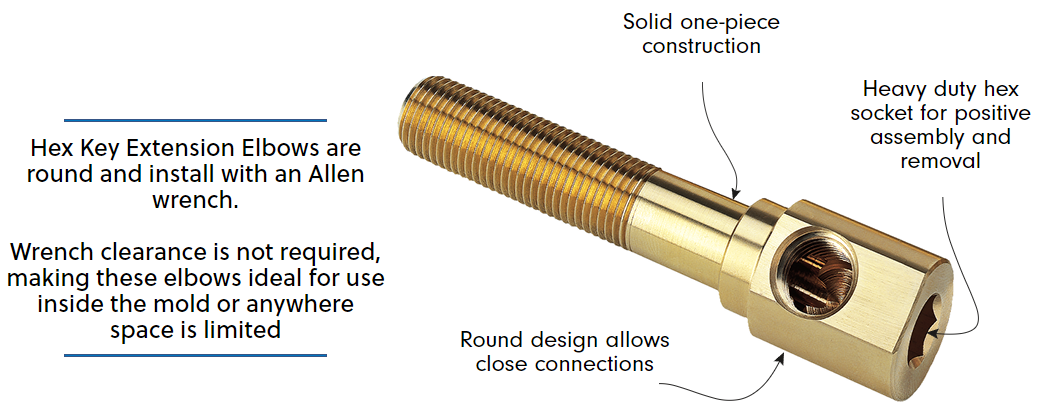

Hex Key Street EL’s

Angular coolant path prevents fitting interference at assembly and guarantees full flow
Requires smaller swing clearance than standard elbows
BSPT and other thread options are available
Order Pipe Nipples here.

Catalog Number	Pipe Size A	Pipe Size B	L	E	O.D.	Min Clearance Diameter	Hex Key Size	Step Download
KL16	1/16	1/16	1.156	.531	.552	9/16	1/4
KL1618	1/16	1/8	1.218	.531	.615	5/8	5/16
KL18	1/8	1/8	1.312	.580	.615	5/8	5/16
KL1814	1/8	1/4	1.500	.593	.860	7/8	3/8
KL14	1/4	1/4	1.625	.660	.860	7/8	3/8
KL1438	1/4	3/8	1.625	.712	.985	1	1/2
KL38	3/8	3/8	1.750	.780	.985	1	1/2
KL50	1/2	1/2	2.250	.940	1.235	1 1/4	1/2

Hex Key Street EL’s

Angular coolant path prevents fitting interference at assembly and guarantees full flow
Accurate length adjustments are easy with the patented Custom Mold thread system
BSPT and other thread options are available
Order Pipe Nipples here.

Catalog Number

Pipe Size
A

Pipe Size
B

O.D.

Minimum Clearance Diameter

Hex
Key
Size

OVERALL LENGTH ‘L’

Step
Download

2 1/2

5 1/2

8 1/2

11 1/2

EKL16-

1/16

.531

.552

9/16

1/4

•

EKL18-

1/8

.580

.615

5/8

5/16

•

EKL14-

1/4

.660

.860

7/8

3/8

•

EKL38-

3/8

.780

.895

1/2

•

EKL50-

1/2

.940

1.235

1 1/4

1/2

•

* To order, specify Catalog Number and Overall Length. Example: EKL14-4
* For a custom length, specify Catalog Number and Overall Length. Example: EKL14-7.875

90 Deg. Street Elbows

Finest quality – MADE IN USA
Solid brass construction
See other elbow styles here

Catalog Number	Pipe Size	W	H	Step Download
SL-18	1/8	11/16	15/16
SL-14	1/4	1	1 1/4
SL-38	3/8	1 1/8	1 3/8
SL-50	1/2	1 1/2	1 3/4

45 Deg. Street Elbows

Finest quality – MADE IN USA
Solid brass construction

Catalog Number	Pipe Size	Step Download
AL-18	1/8
AL-14	1/4
AL-38	3/8
AL-50	1/2
