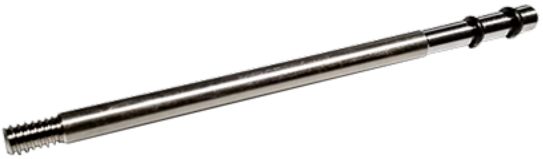

Outer Tubes
O-Ring Type
- All stainless construction
- Viton O-Rings included installed
- Available in any length
- Order any quantity
| Catalog Number | Thread Size | Thread Length (mm) | Pipe Thread Engagement (ref.) | O.D (mm) | I.D (mm) | Relief Dia. (mm) | Relief Length R | Viton O-Rings Included | Step Download |
| JCT-M6-OR- | M6 X 1 | 8 | – | 6 | 3.0 | 5.90 | 23.0 | S4 |  |
| JCT-16-OR- | 1/16-27 NPT | – | 5 | 8 | 4.6 | 7.85 | 23.0 | S6 | |
| JCT-18-OR- | 1/8-27 NPT | – | 5 | 10.3 | 5.6 | 9.85 | 25.4 | P7 | |
* Viton O-rings included and installed

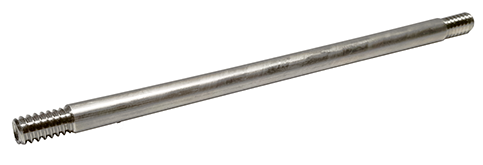

Threaded Type
- Threaded both ends
- All stainless construction
- BSPT Mold threads available
- Available in any length
- Order any quantity
| Stainless Catalog Number | Brass Catalog Number | Thread Size | Thread Length | O.D. | I.D. | Step Download |
| JCT-M6-T- | N/A | M6X-1 | 5/16 | 1/4 | .120 | |
| SSPN16- | BPN16- | 1/16-27 NPT | – | 5/16 | .182 | |
| SSPN18- | cBPN18- | 1/8-27 NPT | – | 13/32 | .218 | |
Example: JCT-M6-T-108.6
