Tap-In O-Ring Plugs
- Press fit eliminates expansion stresses of taper plugs
- NO BACKUP required

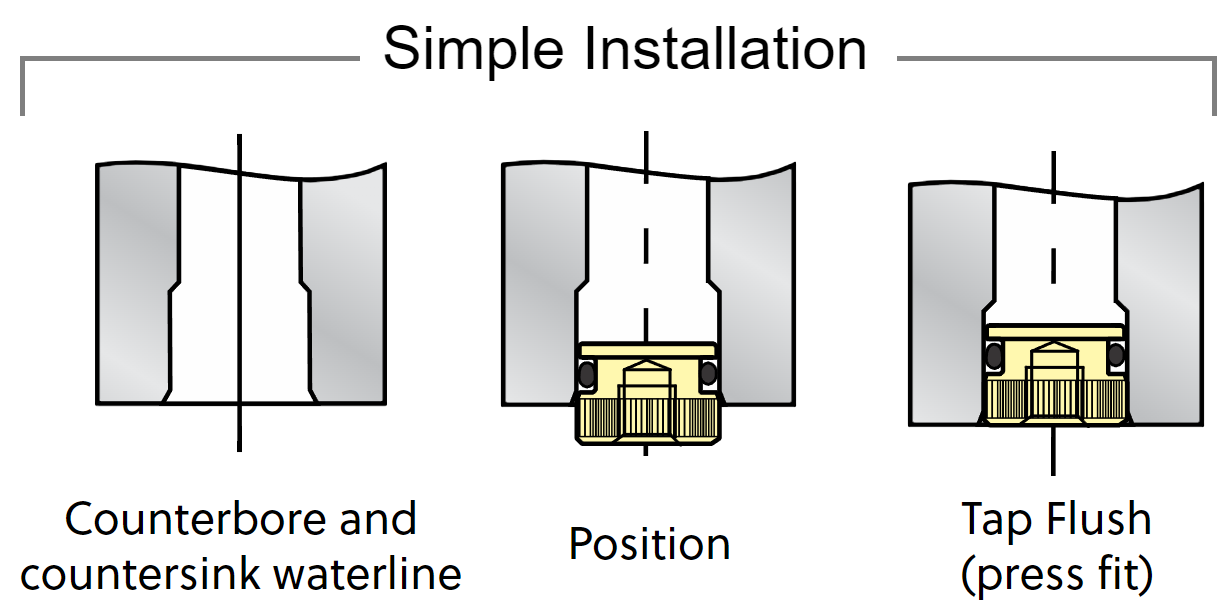

- Easy machining and installation – Just tap in
- Positive O-ring seal to 200+ PSI
- Viton seal allows for temps to 400F
| Catalog Number | Nominal Pipe Size (ref.) | Ream Size R (+.002) (-.000) | B (+.000) (-.005) | D C-Bore Depth (Min.) | Removal Thread Size | Step Download |
| TIP-281 | 1/16 | .281 | 5/16 | .312 | 6-32 |  |
| TIP-375 | 1/8 | .375 | 5/16 | .312 | 10-32 | |
| TIP-500 | 1/4 | .500 | 3/8 | .375 | 1/4-20 | |
| TIP-625 | 3/8 | .625 | 7/16 | .437 | 5/16-18 | |
| TIP-750 | 1/2 | .750 | 1/2 | .500 | 5/16-18 | |

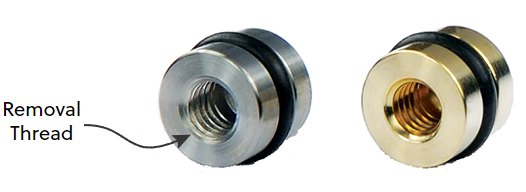

Push-In O-Ring Plugs
- O-Ring Plugs are used when backed up by other mold inserts, holder blocks, etc.
- Available in Brass or Stainless Steel
- Standard Buna O-Ring provides sealing to 210F
- Viton O-Rings available
| Brass Catalog Number | Stainless Catalog Number | Ream Size R (+.005) (-.000) | B (+.000) (-.005) | D Min. Depth | Removal Thread Size | Step Download |
| OR-281 | OR-281SS | .281 | 1/4 | .250 | 6-32 | |
| OR-375 | OR-375SS | .375 | 5/16 | .312 | 10-32 | |
| OR-500 | OR-500SS | .500 | 5/16 | .312 | 10-32 | |
| OR-625 | OR-625SS | .625 | 7/16 | .437 | 1/4-20 | |
| OR-750 | OR-750SS | .750 | 1/2 | .500 | 1/4-20 | |
| OR-1000 | OR-1000SS | 1.000 | 5/8 | .625 | 3/8-16 | |
| OR-1187 | OR-1187SS | 1.187 | 5/8 | .625 | 3/8-16 | |
Threadless Diverting Plugs
- Withstand pressures to 72 PSI
- Buna O-Ring will seal rough corroded holes
- Available in sizes to fit standard or oversized holes
| Catalog Number | Drill Size | Nominal Pipe Size | Wrench Hex Size | Overall Length | Step Download |
| BTP-10 | 11/32 | 1/8 | 5/64 | .50 | |
| BTP-10-OS | 23/64 | | |||
| BTP-20 | 7/16 | 1/4 | 1/8 | .56 | |
| BTP-20-OS | 29/64 | | |||
| BTP-40 | 9/16 | 3/8 | 1/8 | .62 | |
| BTP-40-OS | 37/64 | | |||
| BTP-60 | 11/16 | 1/2 | 1/8 | .62 | |
| BTP-60-OS | 45/64 | |
