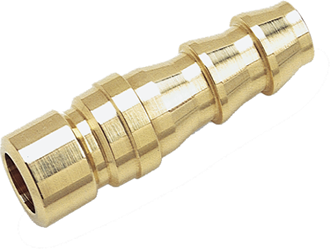

Combination Hose Inserts
Eliminates multiple fittings and assembly.
- All flow diameters maximized to reduce restrictions
- Put a Combination Hose Insert on one end of a hose, and a coupler on the other- Hoses can then be snapped together in series
- For use with Push-Lok hose
| 200 SERIES (1/4″ Hole) | ||||
| Catalog Number | Hose I.D. | D | M | L |
| 200-4 | 1/4 | 3/16 | 7/8 | 1-3/8 |
| 200-5 | 5/16 | 1/4 | 7/8 | 1-3/8 |
| 200-6 | 3/8 | 1/4 | 1-1/16 | 1-9/16 |
| 200-8 | 1/2 | 1/4 | 1-1/16 | 1-9/16 |
| 300 SERIES (3/8″ Hole) | ||||
| Catalog Number | Hose I.D. | D | M | L |
| 300-4 | 1/4 | 3/16 | 7/8 | 1-13/16 |
| 300-5 | 5/16 | 1/4 | 7/8 | 1-13/16 |
| 300-6 | 3/8 | 9/32 | 1-1/16 | 1-13/16 |
| 300-8 | 1/2 | 11/32 | 1-1/16 | 1-13/16 |
| 500 SERIES (1/2″ Hole) | ||||
| Catalog Number | Hose I.D. | D | M | L |
| 500-8 | 1/2 | 13/32 | 1-1/16 | 2 |
| 500-12 | 3/4 | 9/12 | 1-1/2 | 2-1/2 |
