Flow-Thru Couplers (Non-valved) With Push-Lok Barbs

Flow-Thru Couplers (With Push-Lok Barbs)

  • Straight through design provides maximum flow rates
  • All brass and stainless steel construction
  • Pressures to 200 psi, temps to 400F
  • Uses Push-Lok Hose available here
  • Replacement seals available here
  • Made in USA

Lock in place with a twist

(Patent Pending)

Straight

200 SERIES (1/4″ Hole)
Catalog
Number		Pipe
Thread
CM-204-PL1/4
CM-205–PL5/16
CM-206–PL3/8
300 SERIES  (3/8″ Hole)
Catalog
Number		Pipe
Thread
CM-306-PL3/8
CM-308-PL1/2
500 SERIES  (1/2″ Hole)
Catalog
Number		Pipe
Thread
CM-504-PL1/2
CM-506-PL3/4

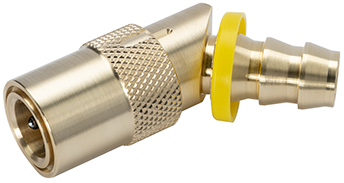

45 Deg.

200 SERIES (1/4″ Hole)
Catalog
Number		Pipe
Thread
CM-224–PL1/4
CM-225–PL5/16
CM-226–PL3/8
300 SERIES  (3/8″ Hole)
Catalog
Number		Pipe
Thread
CM-326–PL3/8
CM-328–PL1/2
500 SERIES  (1/2″ Hole)
Catalog
Number		Pipe
Thread
CM-524-PL1/2
CM-526-PL3/4

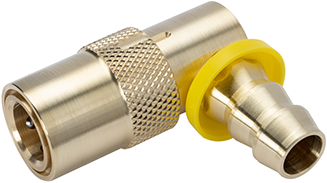

90 Deg.

200 SERIES (1/4″ Hole)
Catalog
Number		Pipe
Thread
CM-214–PL1/4
CM-215–PL5/16
CM-216–PL3/8
300 SERIES  (3/8″ Hole)
Catalog
Number		Pipe
Thread
CM-316–PL3/8
CM-318-PL1/2
500 SERIES  (1/2″ Hole)
Catalog
Number		Pipe
Thread
CM-514-PL1/2
CM-516–PL3/4

Coupler Body Only – Flow Thru

  • Flow-thru type
  • Locks for safety
  • All brass and stainless steel construction
  • Pressures to 200 psi, temps to 400F
  • Use with standard barbs or Push-Lok Barbs
  • Made in USA

Thread Size (NPT)

200 SERIES (1/4″ Hole)
Catalog
Number		Pipe
Thread
CMB-2001/8
CMB-200-1/41/4
300 SERIES  (3/8″ Hole)
Catalog
Number		Pipe
Thread
CMB-3001/4
CMB-300-3/83/8
500 SERIES  (1/2″ Hole)
Catalog
Number		Pipe
Thread
CMB-5001/2
