Valved Couplers (With Standard Barbs)
- Convenient valved coupler action
- These couplers will open all valved connector plugs
- All brass and stainless steel construction
- Pressures to 200 psi, temps to 400F
- Compatible with all mold connection systems.
- Sleeve is plated for identification

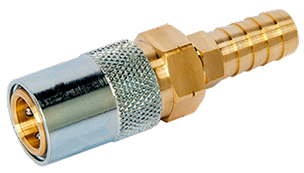

Straight
| 200 SERIES (1/4″ Hole) | ||
| Catalog Number | Pipe Thread | |
| CM-204V | 1/4 | |
| CM-205V | 5/16 | |
| CM-206V | 3/8 | |
| 300 SERIES (3/8″ Hole) | ||
| Catalog Number | Pipe Thread | |
| CM-306V | 3/8 | |
| CM-308V | 1/2 | |
| 500 SERIES (1/2″ Hole) | ||
| Catalog Number | Pipe Thread | |
| CM-504V | 1/2 | |
| CM-506V | 3/4 | |

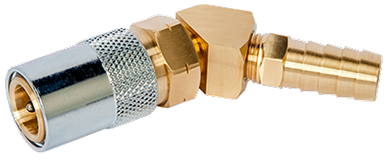

45 Deg.
| 200 SERIES (1/4″ Hole) | ||
| Catalog Number | Pipe Thread | |
| CM-224V | 1/4 | |
| CM-225V | 5/16 | |
| CM-226V | 3/8 | |
| 300 SERIES (3/8″ Hole) | ||
| Catalog Number | Pipe Thread | |
| CM-326V | 3/8 | |
| CM-328V | 1/2 | |
| 500 SERIES (1/2″ Hole) | ||
| Catalog Number | Pipe Thread | |
| CM-524V | 1/2 | |
| CM-526V | 3/4 | |

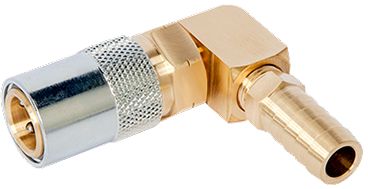

90 Deg.
| 200 SERIES (1/4″ Hole) | ||
| Catalog Number | Pipe Thread | |
| CM-214V | 1/4 | |
| CM-215V | 5/16 | |
| CM-216V | 3/8 | |
| 300 SERIES (3/8″ Hole) | ||
| Catalog Number | Pipe Thread | |
| CM-316V | 3/8 | |
| CM-318V | 1/2 | |
| 500 SERIES (1/2″ Hole) | ||
| Catalog Number | Pipe Thread | |
| CM-514V | 1/2 | |
| CM-516V | 3/4 | |
Coupler Body Only – Valved
- Valved type
- All brass and stainless steel construction, sleeve is plated for identification
- These couplers will open all valved connector plugs
- Includes valve and valve spring
- Pressures to 200 psi, temps to 400F
- Use with standard barbs or Push-Lok Barbs
- Find replacement seals here
- Made in USA
Thread Size (NPT)
| 200 SERIES (1/4″ Hole) | ||
| Catalog Number | Pipe Thread | |
| CMB-200-V | 1/8 | |
| 300 SERIES (3/8″ Hole) | ||
| Catalog Number | Pipe Thread | |
| CMB-300-V | 1/4 | |
| 500 SERIES (1/2″ Hole) | ||
| Catalog Number | Pipe Thread | |
| CMB-500-V | 1/2 | |
