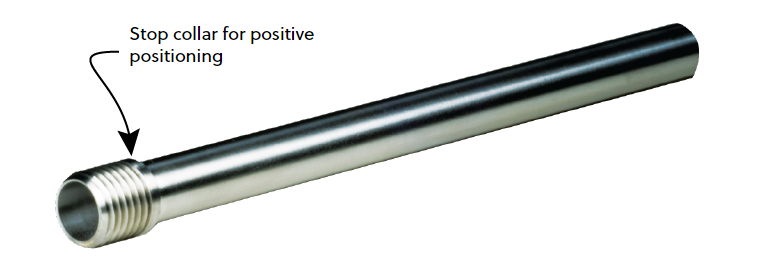

High Flow Stainless Straight threads with stop collar

High-Flow Stainless Tubes

  • All stainless construction for high strength and durability
  • Cut to exact length tubes ship
    same day
  • To order, specify Catalog Number
    and Overall Length.
    Example: HF250T-18
  • For a custom length, specify Catalog Number and Overall Length.
    Example: HF250T-23.24
  • We stock over 150 sizes of thin wall stainless tubing. See them here.
  • We build stepped and custom tubes
    to your print. More information here.
Catalog
Number		Thread
Size		Tube
O.D.		Tube
I.D.		Thread
Length
H		AOverall Length “L”Step
Download
12″18″24″36″Lengths
to 5 ft.
HF072T-5-44.072.060.125.140•••••Cad Icon
JHF072T-10-32.156.203•••••Cad Icon
HF093T-5-44.090.076.125.140•••••
JHF093T-10-32.156.203•••••
HF125T-10-32.125.109.156.203•••••Cad Icon
JHF125T-1/4-28.203.255•••••Cad Icon
HF187T-1/4-28.187.167.203.255•••••Cad Icon
JHF187T-5/16-24.235.290•••••Cad Icon
HF250T-5/16-24.250.230.235.290•••••Cad Icon
JHF250T-3/8-24.296.359•••••Cad Icon
HF312T-3/8-24.312.288.296.359•••••Cad Icon
JHF312T-7/16-20.359.437•••••Cad Icon
HF375T-7/16-20.365.340.359.437•••••Cad Icon
JHF375T-1/2-20.421.500•••••Cad Icon
HF437T-1/2-20.427.397.421.500•••••Cad Icon
JHF437T-9/16-18.421.531•••••Cad Icon
HF500T-9/16-18.500.444.421.531•••••Cad Icon
JHF500T-5/8-18.421.531•••••Cad Icon
* To order, specify Catalog Number and Overall Length. Example: HF250T-18
* For a custom length, specify Catalog Number and Overall Length. Example: HF250T-23.24
