Pipe Plug Style Pipe thread installation

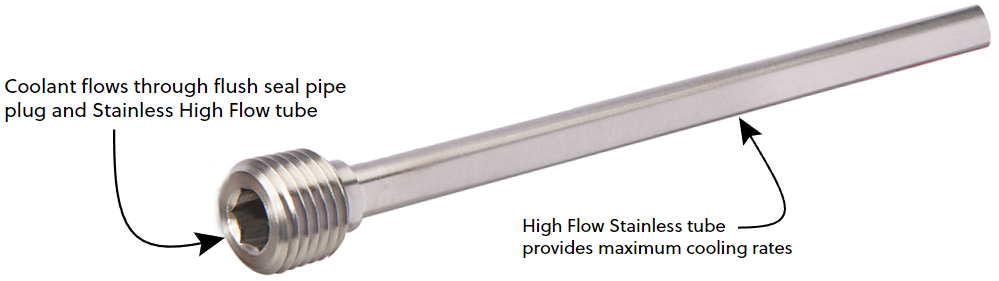

Piston Tubes

  • All stainless construction for high strength and durability
  • Cut to exact length for same day shipping
  • To order, specify Catalog Number and Overall Length.
    Example: PT14-250-18
  • For a custom length, specify Catalog Number and overall length.
    Example: PT14-250-23.24
  • Custom tube sizes and configurations available here
  • Use as a stand alone component or in Rear-Load Cascades
Catalog
Number
Pipe
Size
(NPT)
Tube
O.D.
Tube
I.D.
Hex
Wrench
Size
Overall Length “L”Setp
Download
12″18″24″36″48″Lengths to 5 ft.
PT16-072-1/16.072.0605/32Cad Icon
PT16-093-.090.0765/32Cad Icon
PT16-109-.109.0955/32Cad Icon
PT16-125-.125.1095/32Cad Icon
PT16-187-.187.1675/32Cad Icon
PT18-125-1/8.125.1093/16Cad Icon
PT18-187-.187.1673/16Cad Icon
PT18-250-.250.2301/4Cad Icon
PT14-187-1/4.187.1671/4Cad Icon
PT14-250-.250.2301/4Cad Icon
PT14-312-.312.2885/16Cad Icon
PT38-312-3/8.312.2885/16Cad Icon
PT38-375-.365.3405/16Cad Icon
PT38-437-.427.3973/8Cad Icon
PT12-375-1/2.365.3403/8Cad Icon
PT12-437-.427.3973/8Cad Icon
PT12-500-.500.4441/2Cad Icon
PT34-437-3/4.427.3979/16Cad Icon
PT34-500-.500.4449/16Cad Icon
PT34-625-.625.5699/16Cad Icon
* To order, specify Catalog Number and Overall Length. Example: PT14-250-18
* For a custom length, specify Catalog Number and Overall Length. Example: PT14-250-23.24

Application Information
